Case study

Warehouse Conveyor System of The SANITINO Logistics Center

Project in brief

Simplification of goods logistics We have speeded up and automated the flow of goods and made work easier for workers.
Efficient use of space The backbone track consists of two closed circuits that allow easy access to the conveyors.
Implementation time The whole project, from implementation to delivery to the customer, took us approximately 7 months.

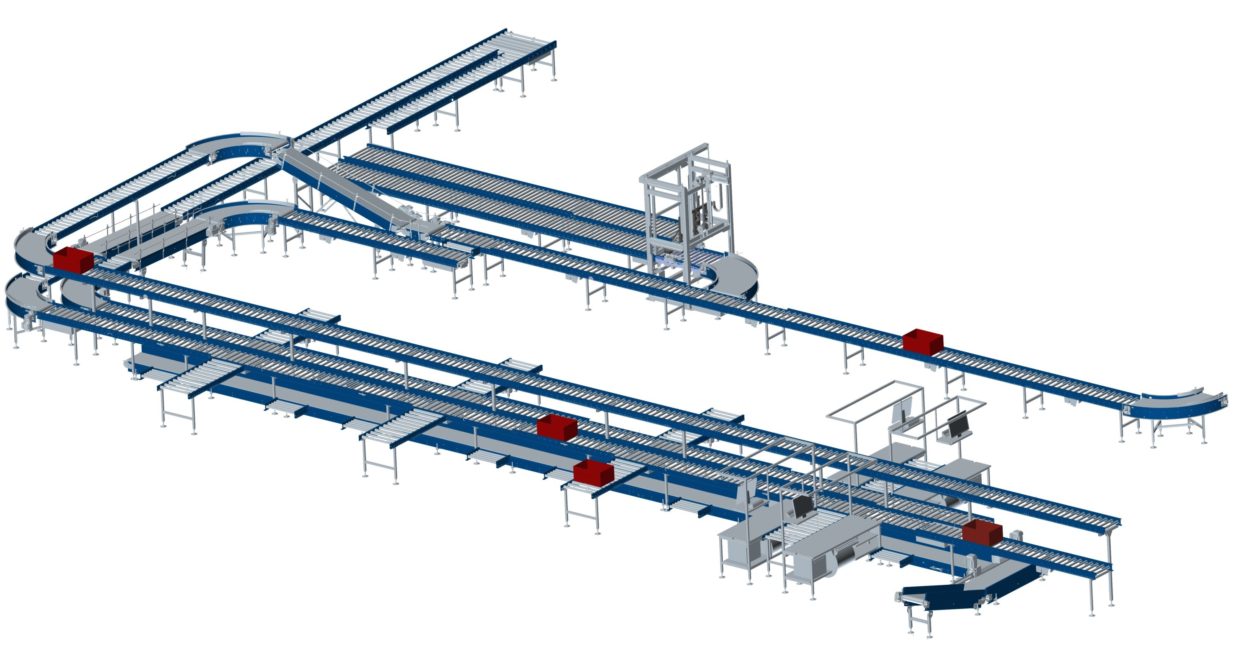

Line dimensions The dimensions of the realized line are about 20 x 30 x 3.5 m. The total length of the track is more than 200 m.

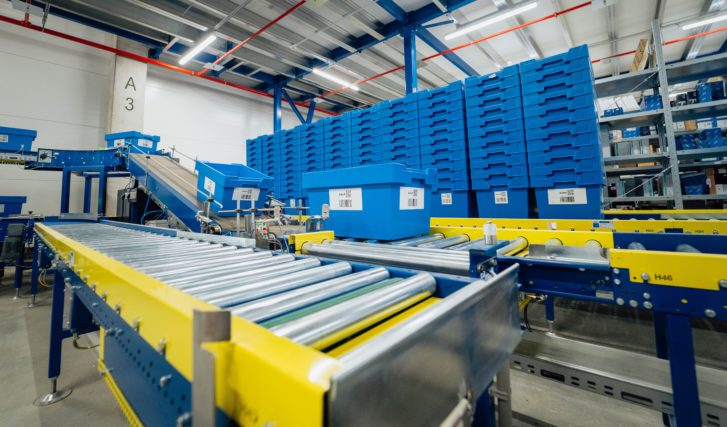

Conveyor line for transportation of KLT crates with goods to the manual packaging workplaces and expedition

Check-in station

More ...

Consolidation circuit

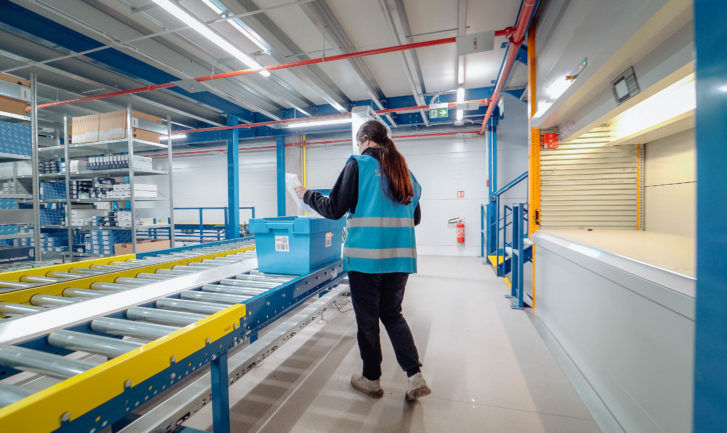

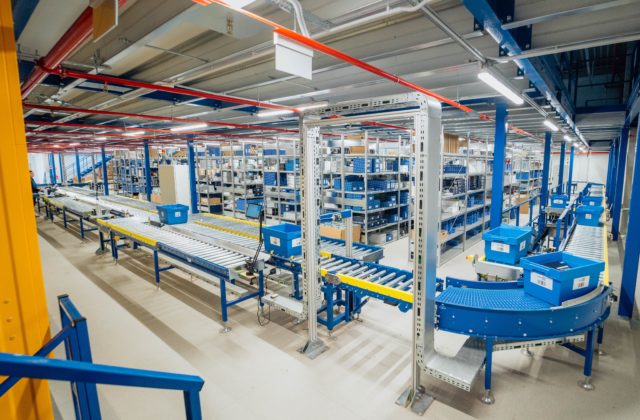

Check-in station

The conveyor line is divided into two floors. A total of 15 workplaces are used for picking goods into KLT crates. Subsequently, the employee returns the checked KLT crates to the track, which then gradually ties down the backbone circuit to the packing workplace.

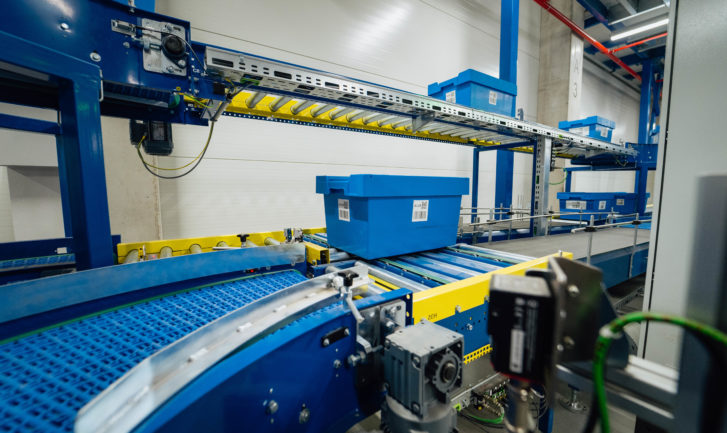

Consolidation circuit

The basis of the packaging workplace is a conveyor circuit used to merge (consolidate) goods, which is divided into several parts. Once the entire consignment has been collected on the circuit, the translators will transport it to the appropriate packing station.

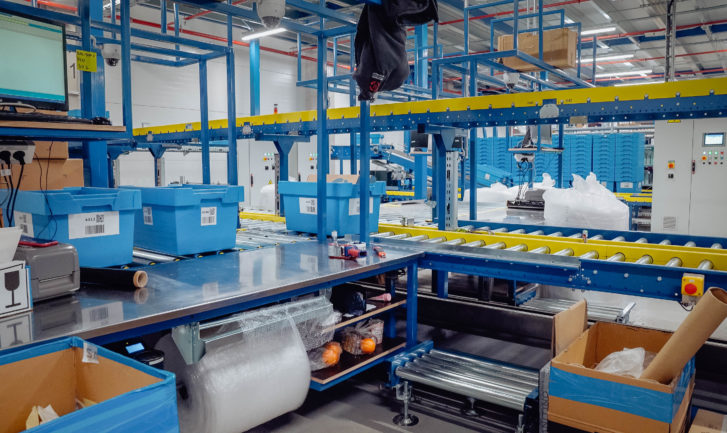

Packing workplace

The worker packs the goods into one shipment and dispatches it with the lower sliding belt. Empty KLT crates return the top track back to the backbone track.

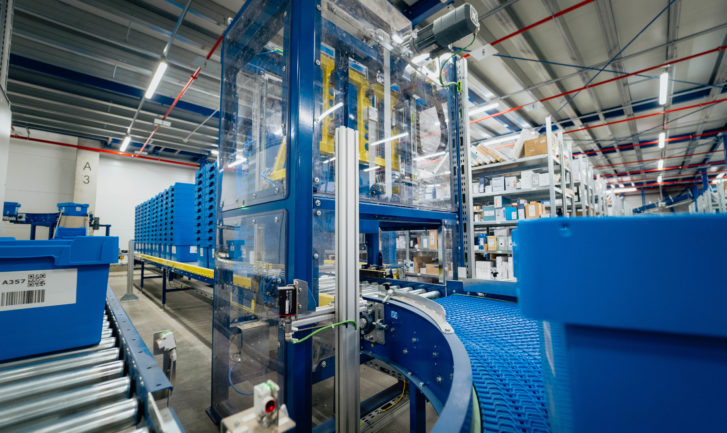

Destacker

A part of the main conveyor line is also a destacker with a container of crates, which automatically regulates the number of KLT crates in circulation. The maximum number of stacked crates is 10 pieces in a column 1,050 mm high.
