Roller conveyors for transportation of lump objects are simple devices whose construction is particularly drawn up. The basic parameters of conveyors (width, height, roller pitch,…) always depend on the size, shape and quantity of transported objects.
Roller conveyors are simple and detailed devices designed for the transport of piece goods.

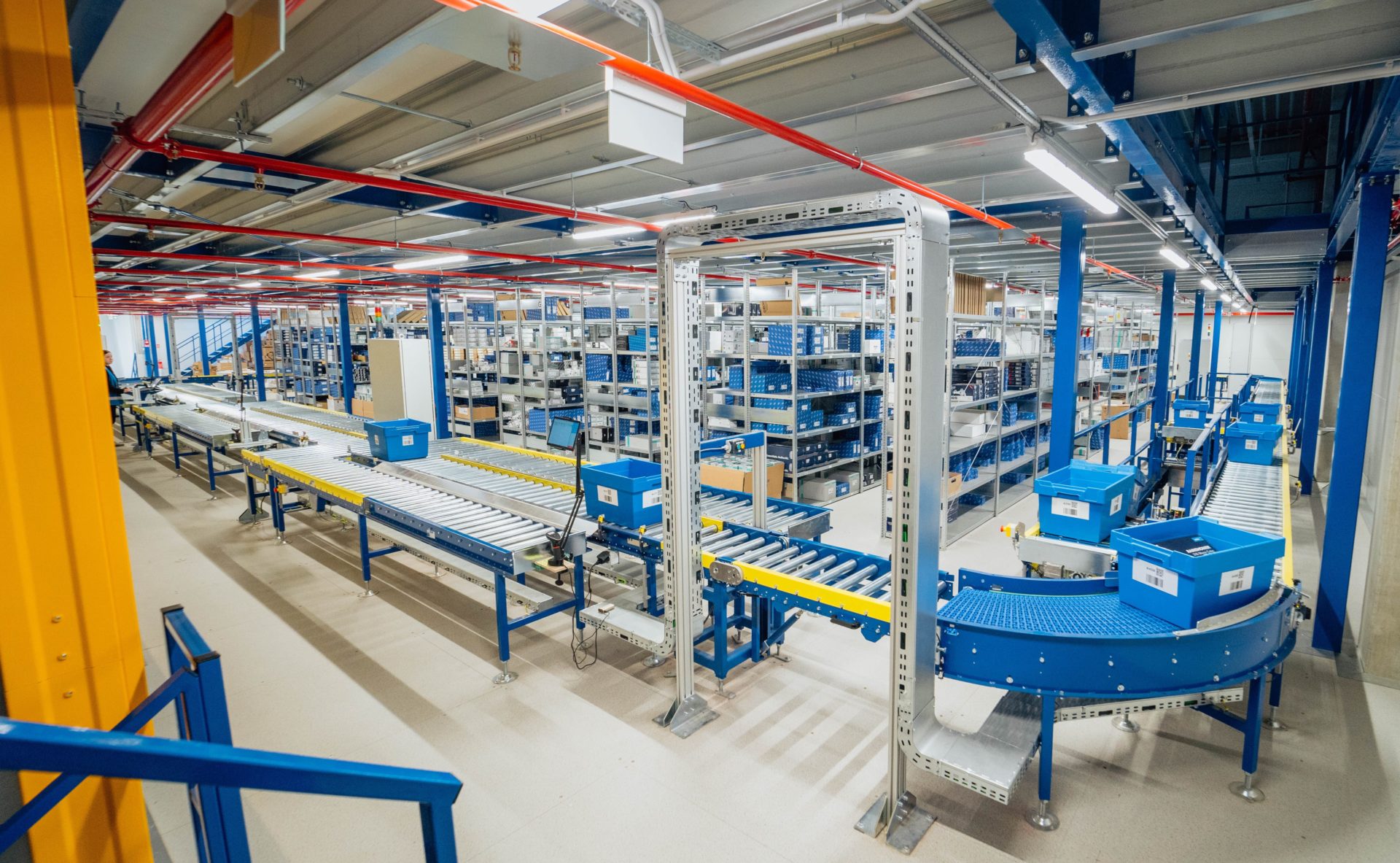

The basic parameters of conveyors, which are the width, height, type or spacing of rollers, are determined with regard to the size, shape and quantity of the conveyed objects. The roller conveyors themselves, together with the supplied accessories, are usually the basis for larger lines, such as production or packaging lines or conveyor systems.
The roller conveyors themselves, together with the supplied accessories, are usually the basis for larger lines, such as production or packaging lines or conveyor systems.
Roller conveyors are available in a wide range of designs:
- turning units
- reloading (transfer) units
- lifting units
The main accessories include stops, electrically or pneumatically operated stoppers, sorting and merging modules, stackers, stackers, weighing systems, packaging and sealing machines and robots.
A reliable identification and powerful control system ensures that the roller conveyor is error-free and fully functional.
Not sure which roller conveyors are right for your type of operation? Contact us. We are happy to help you.

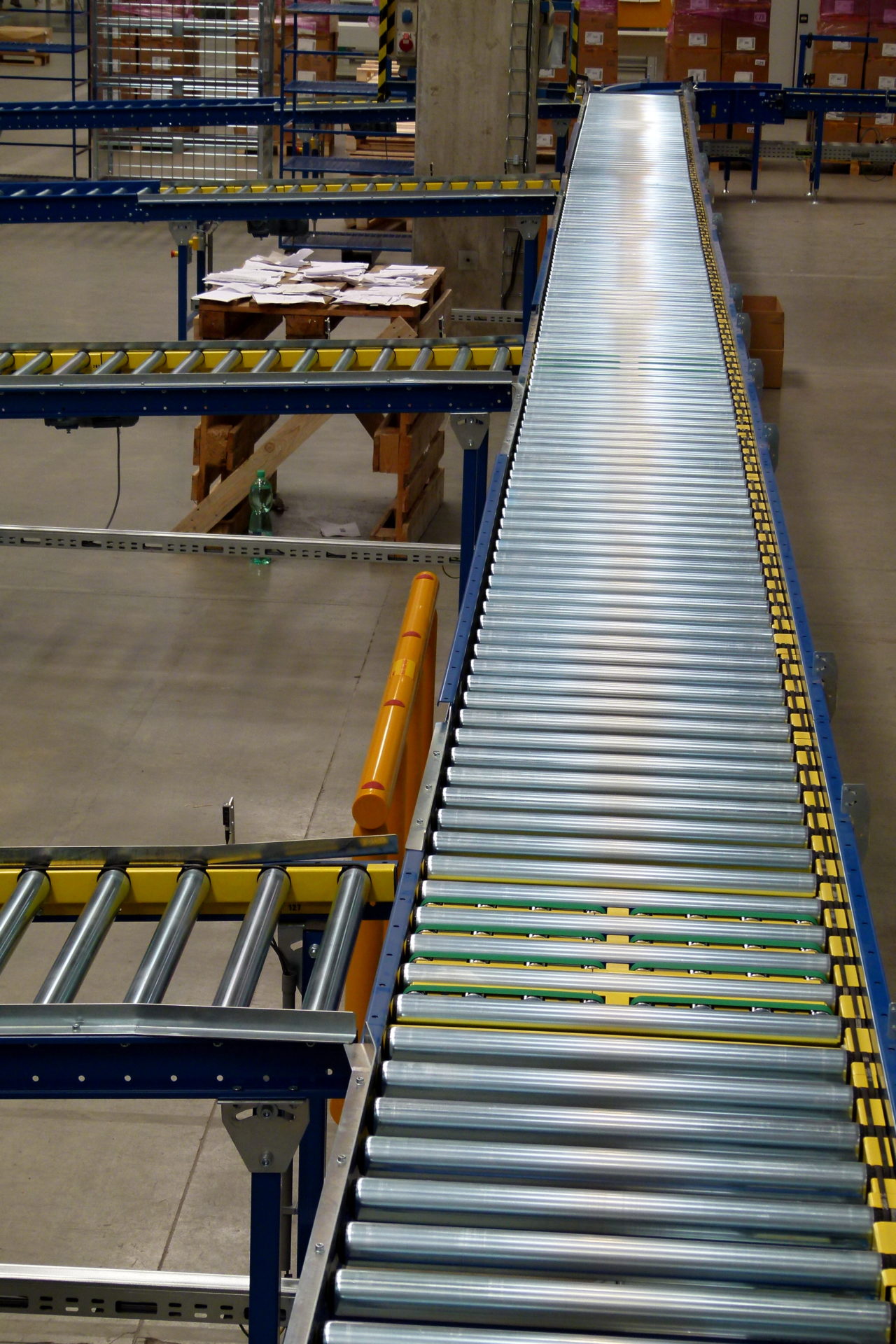

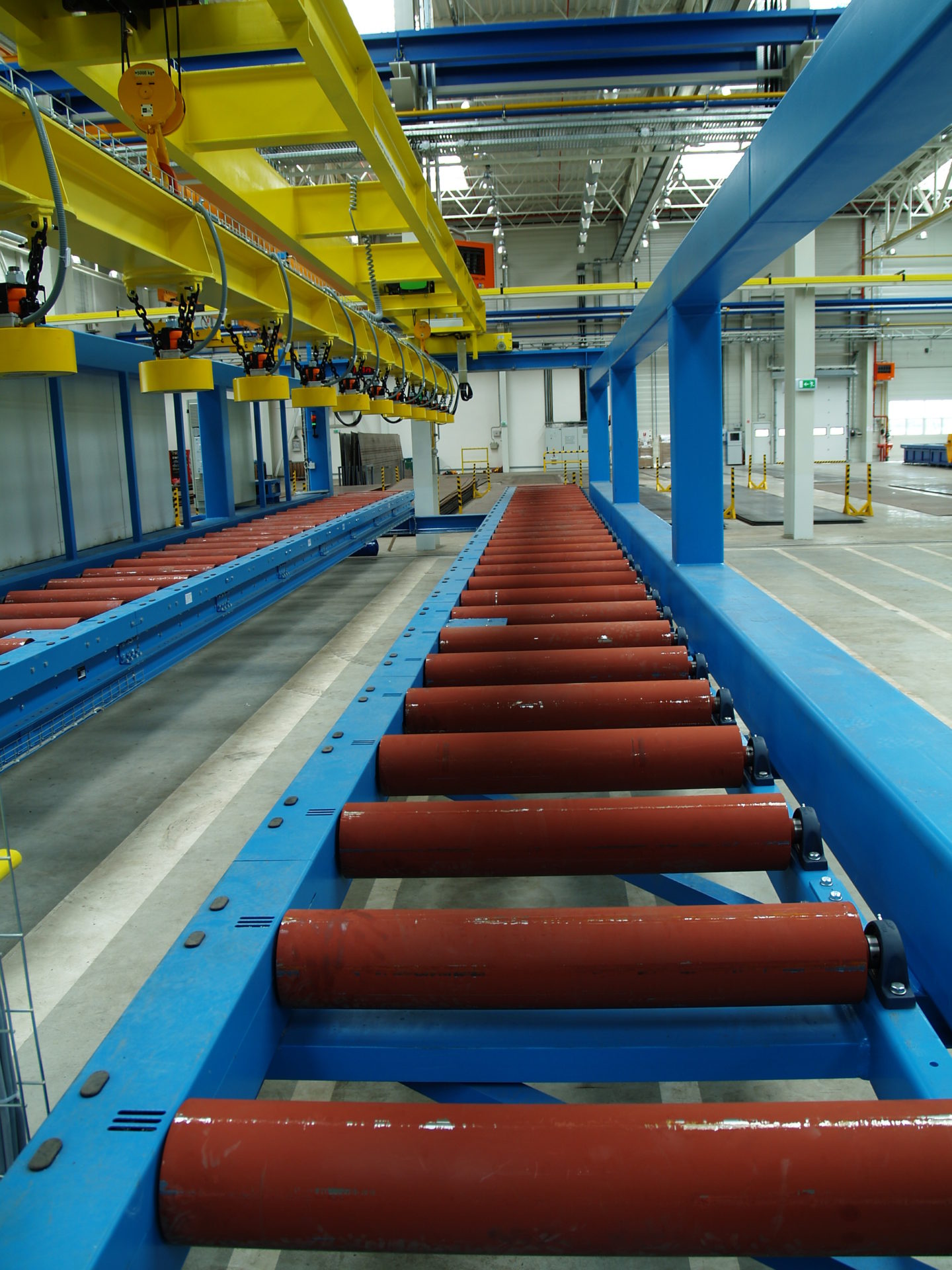

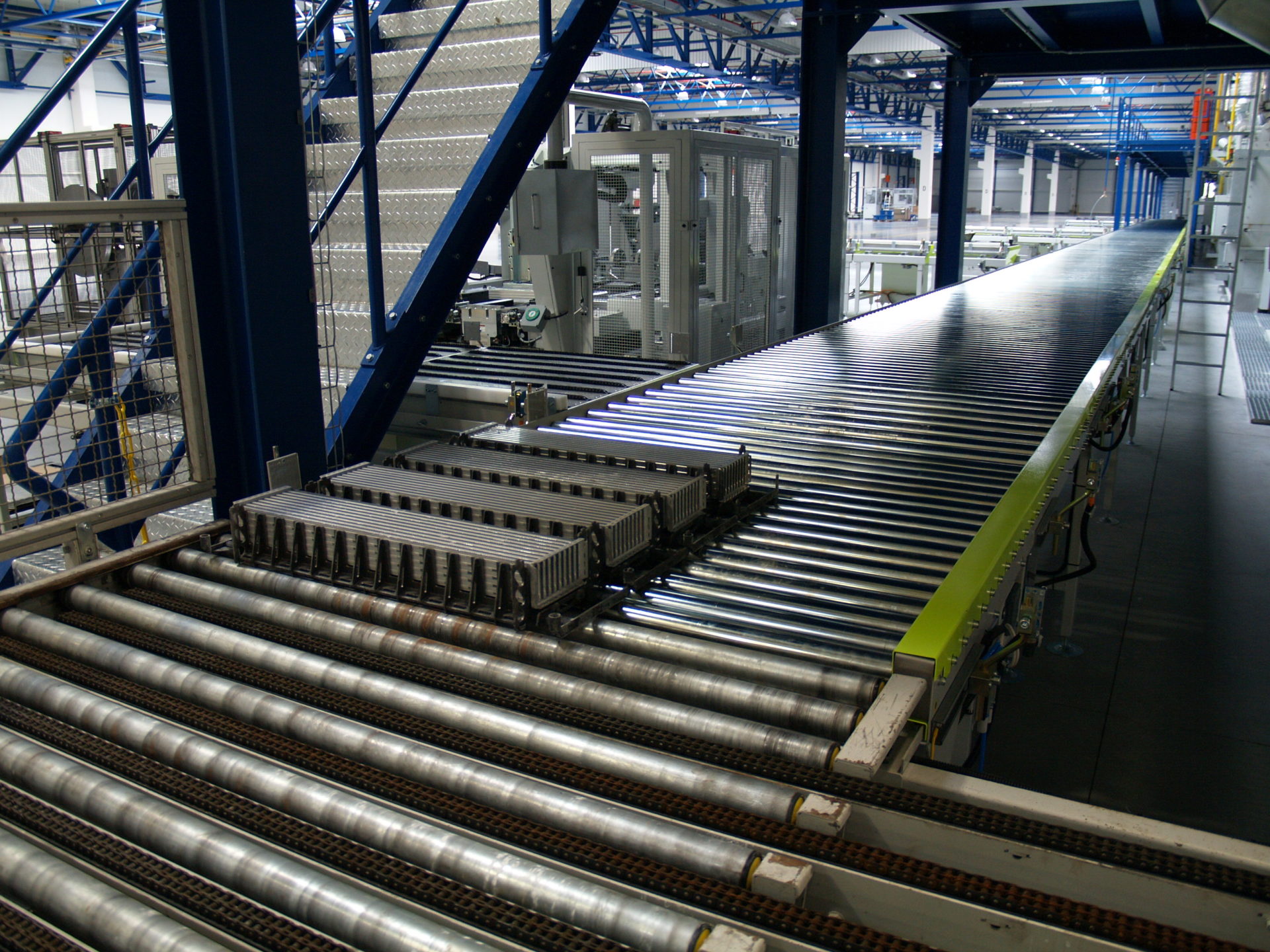

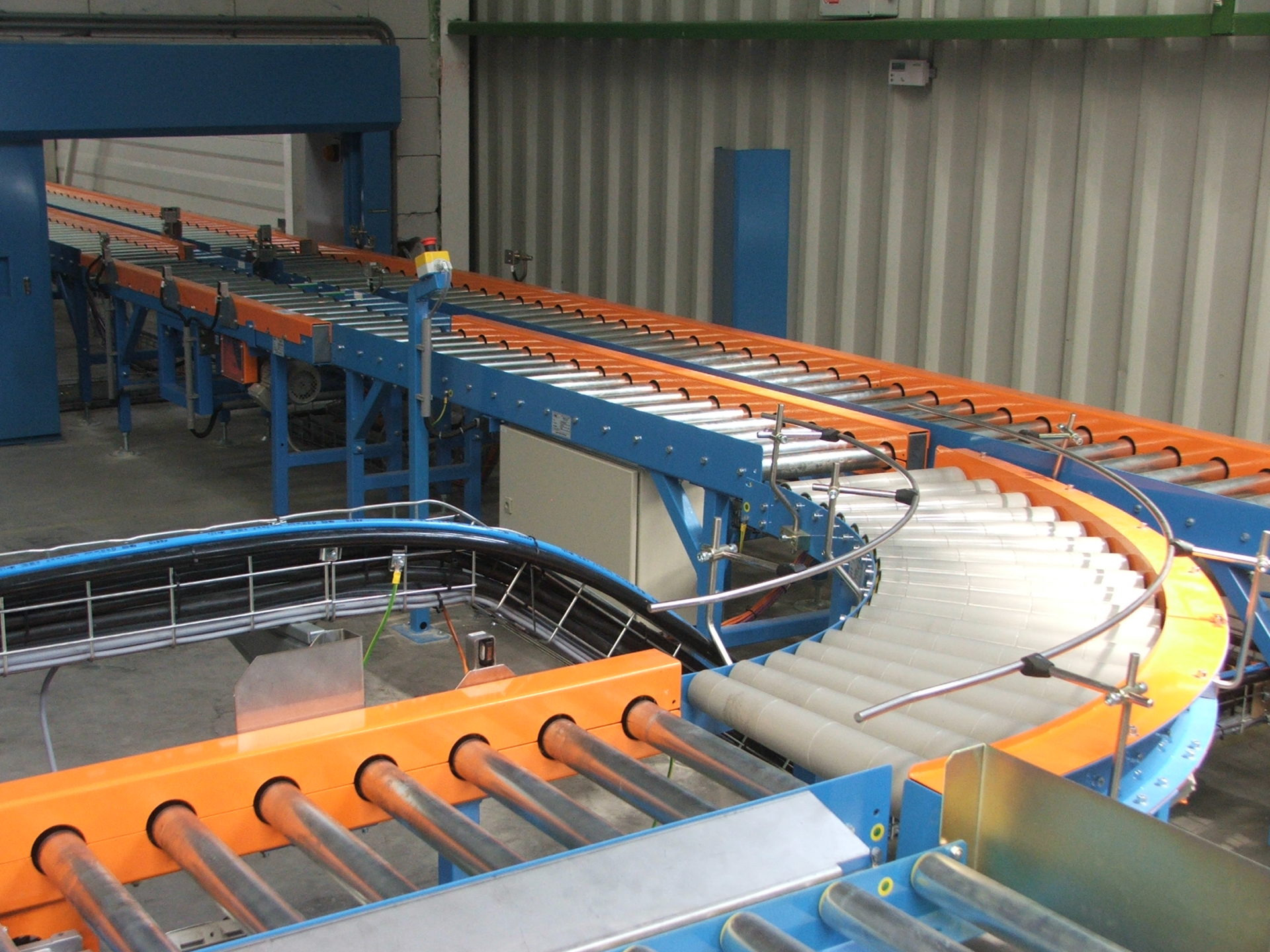

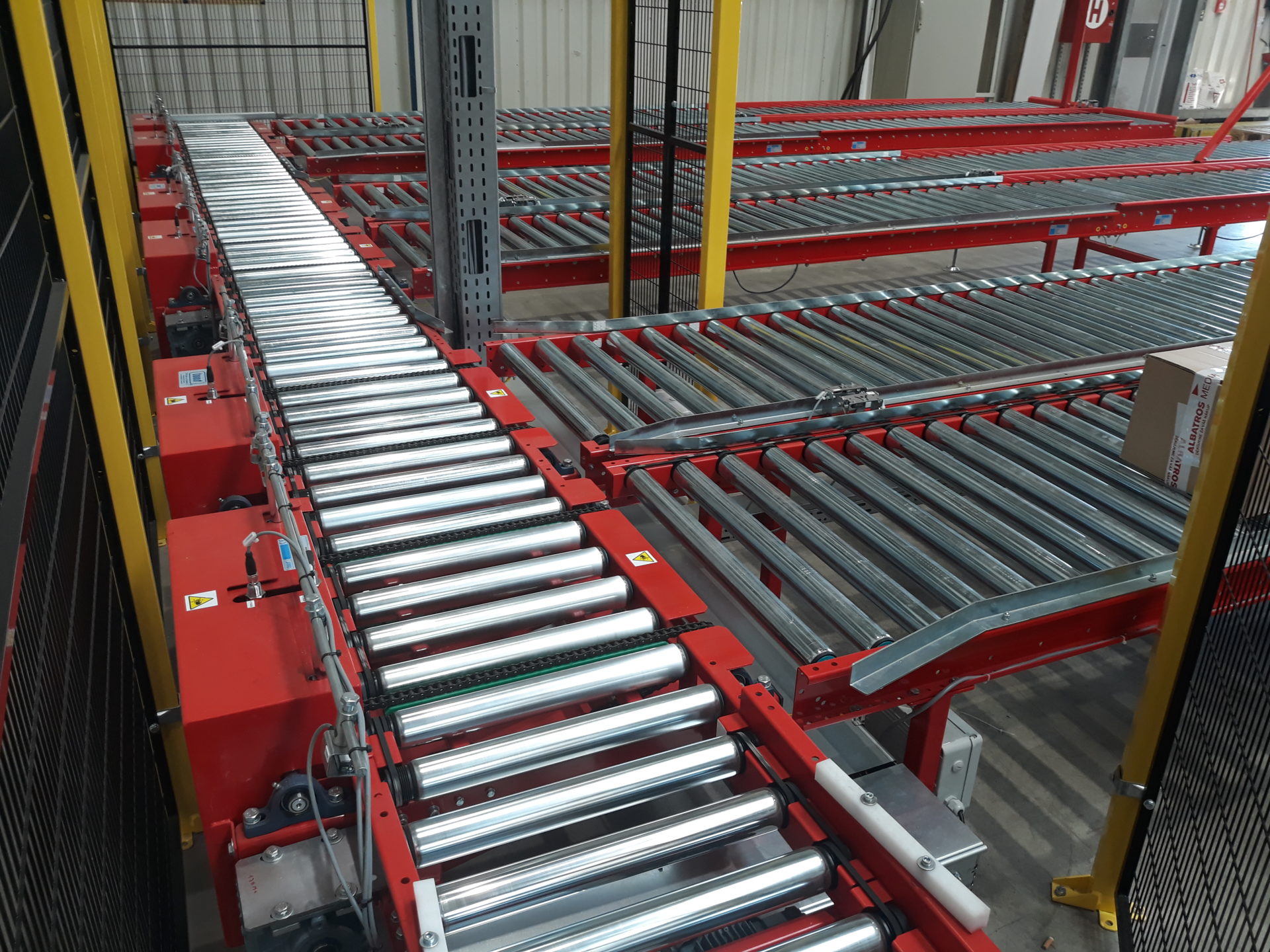

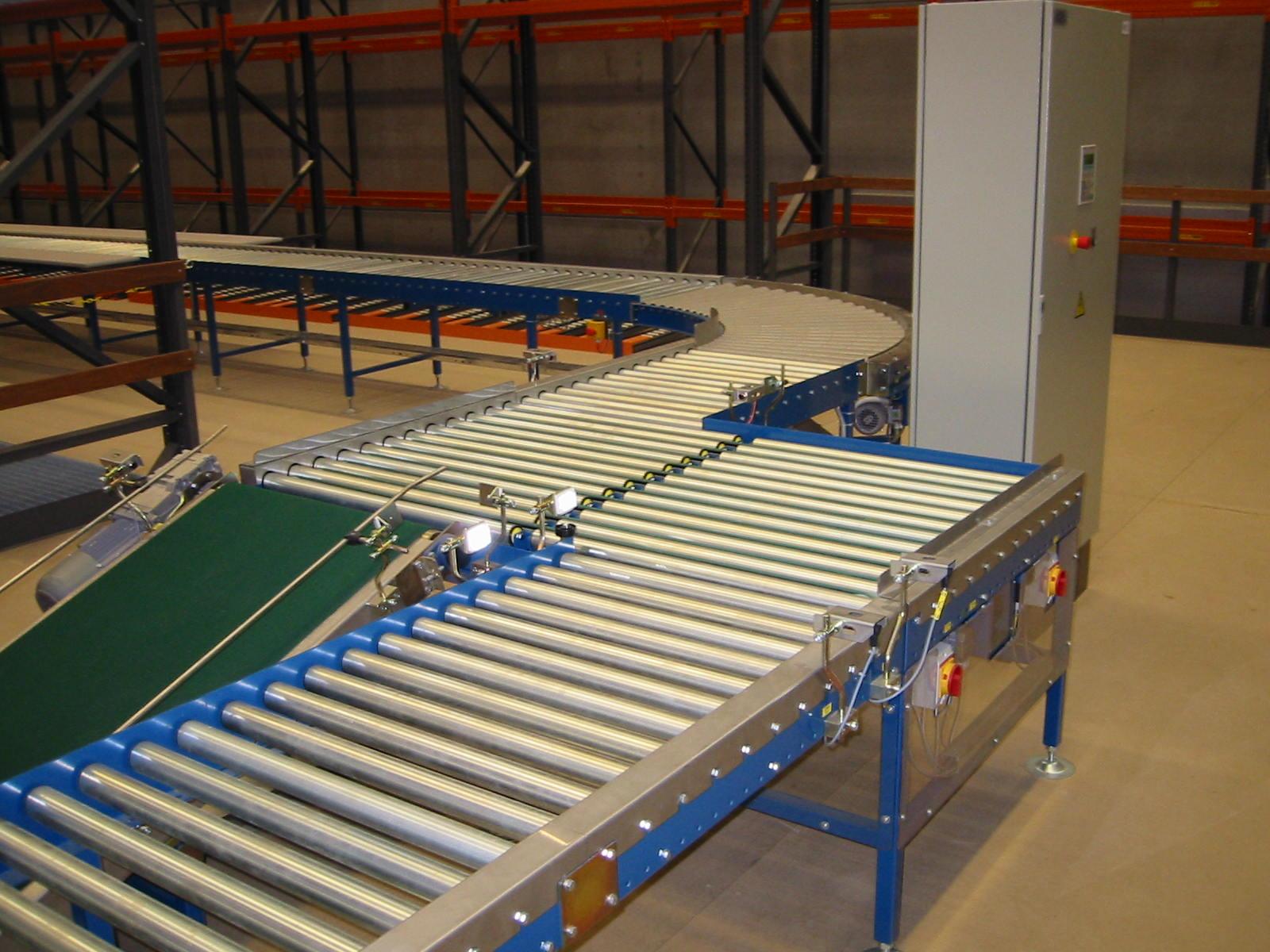

Driven Roller Conveyors
Roller conveyors have universal use. They are very reliable, easily adaptable and safe.
Types of Drives
- chain loops from roller to roller
- continuous tangential chain
- round/flat tangential belt
- belt loops – circle/toothed belt

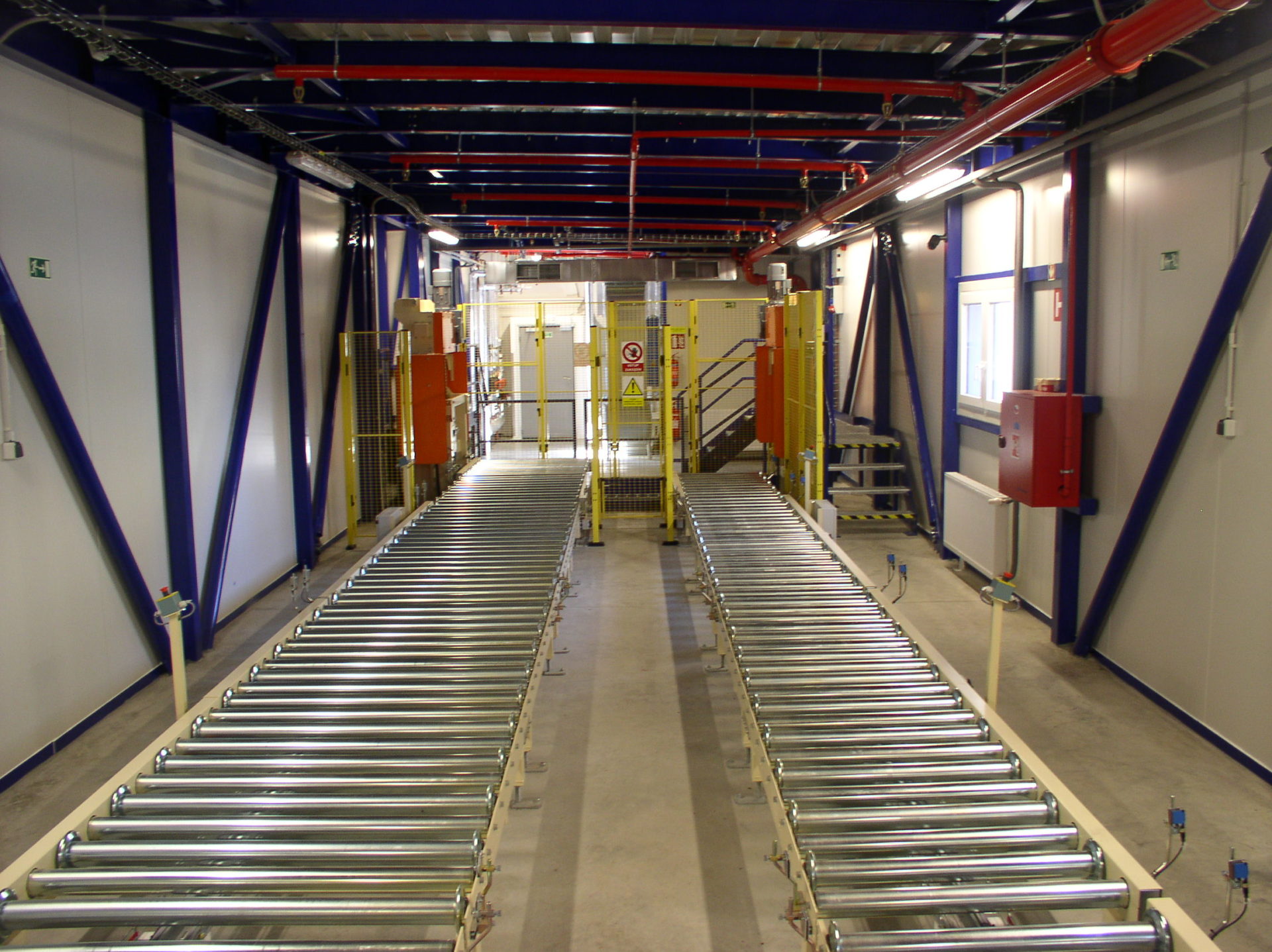

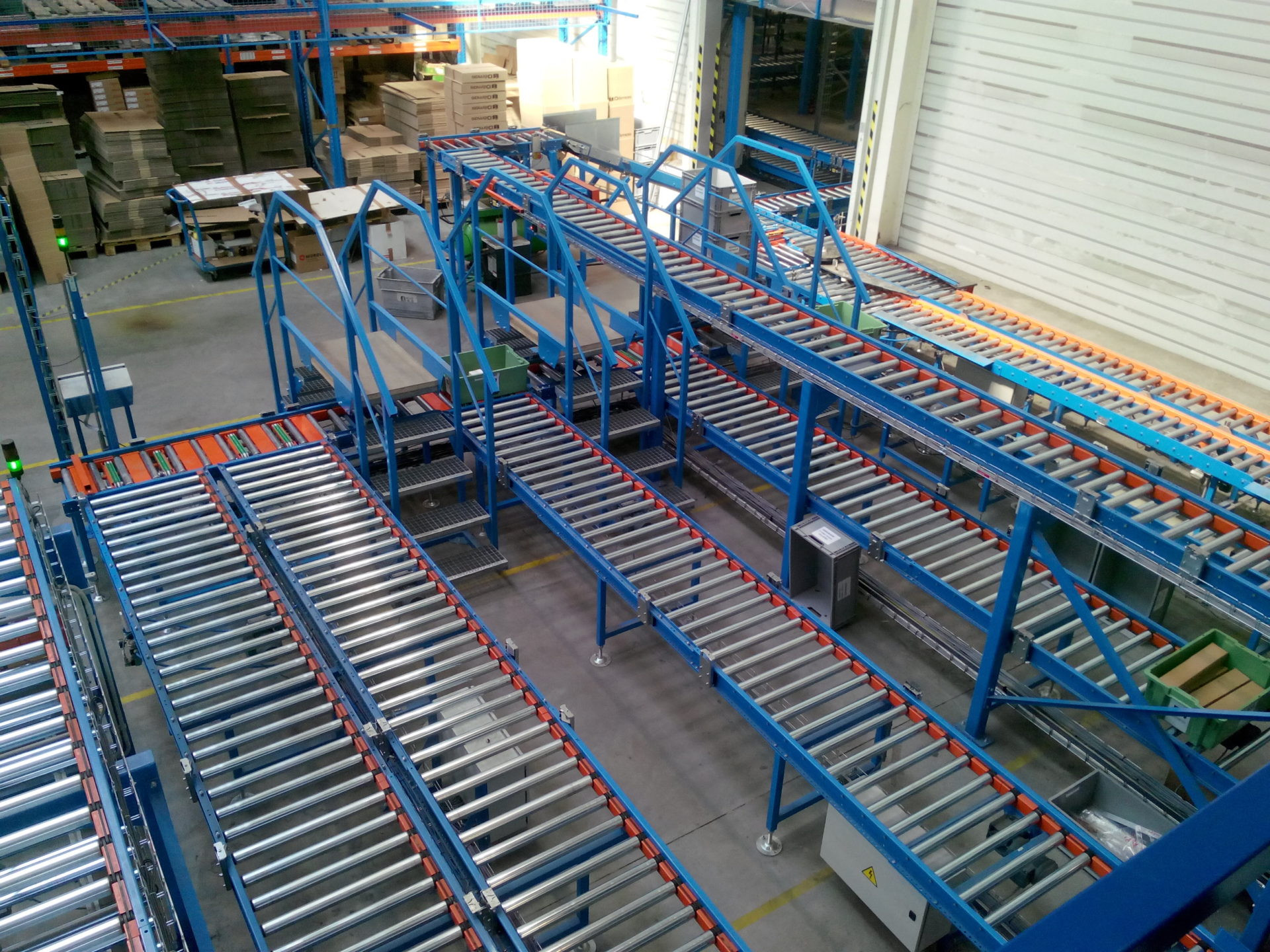

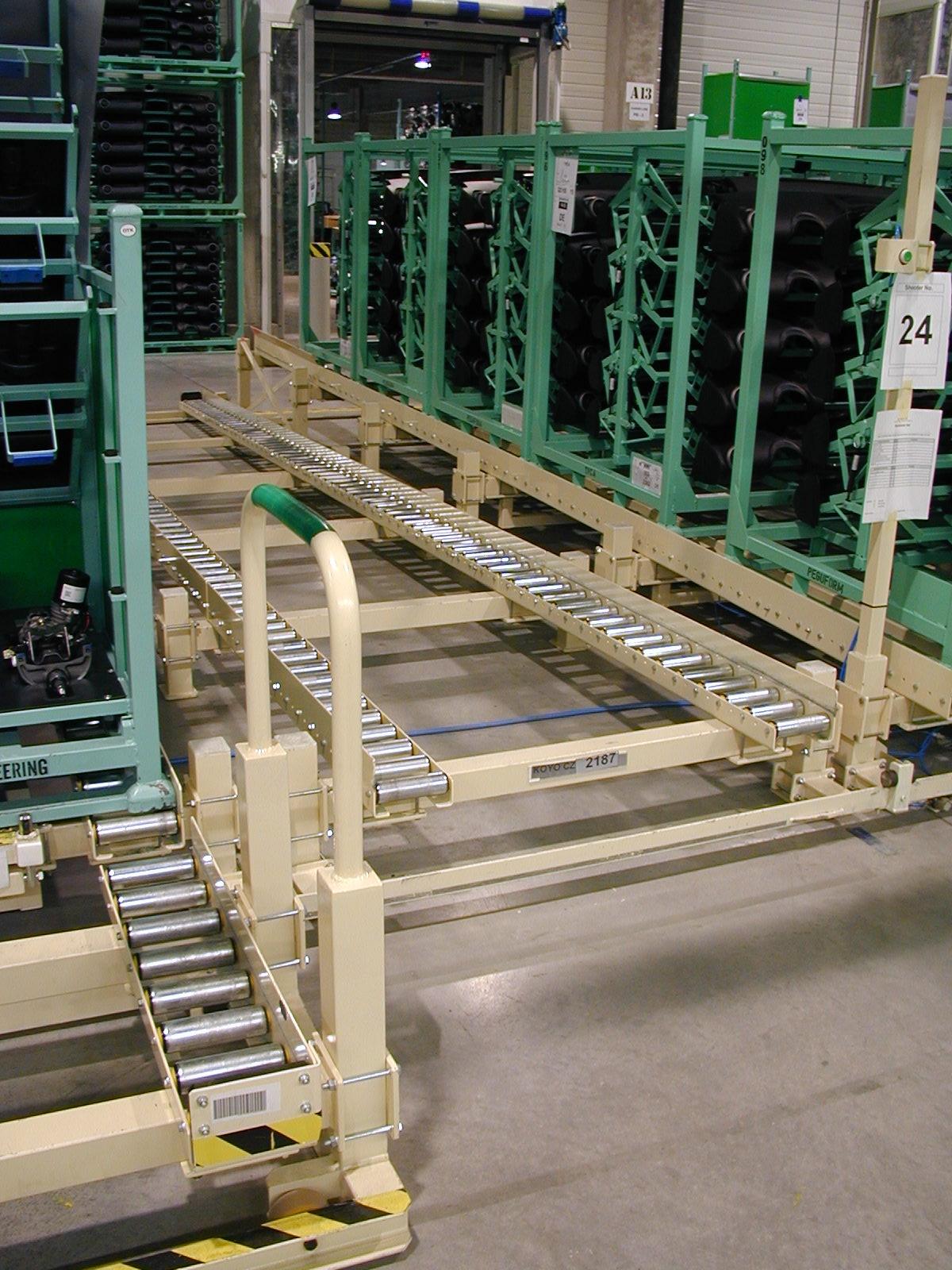

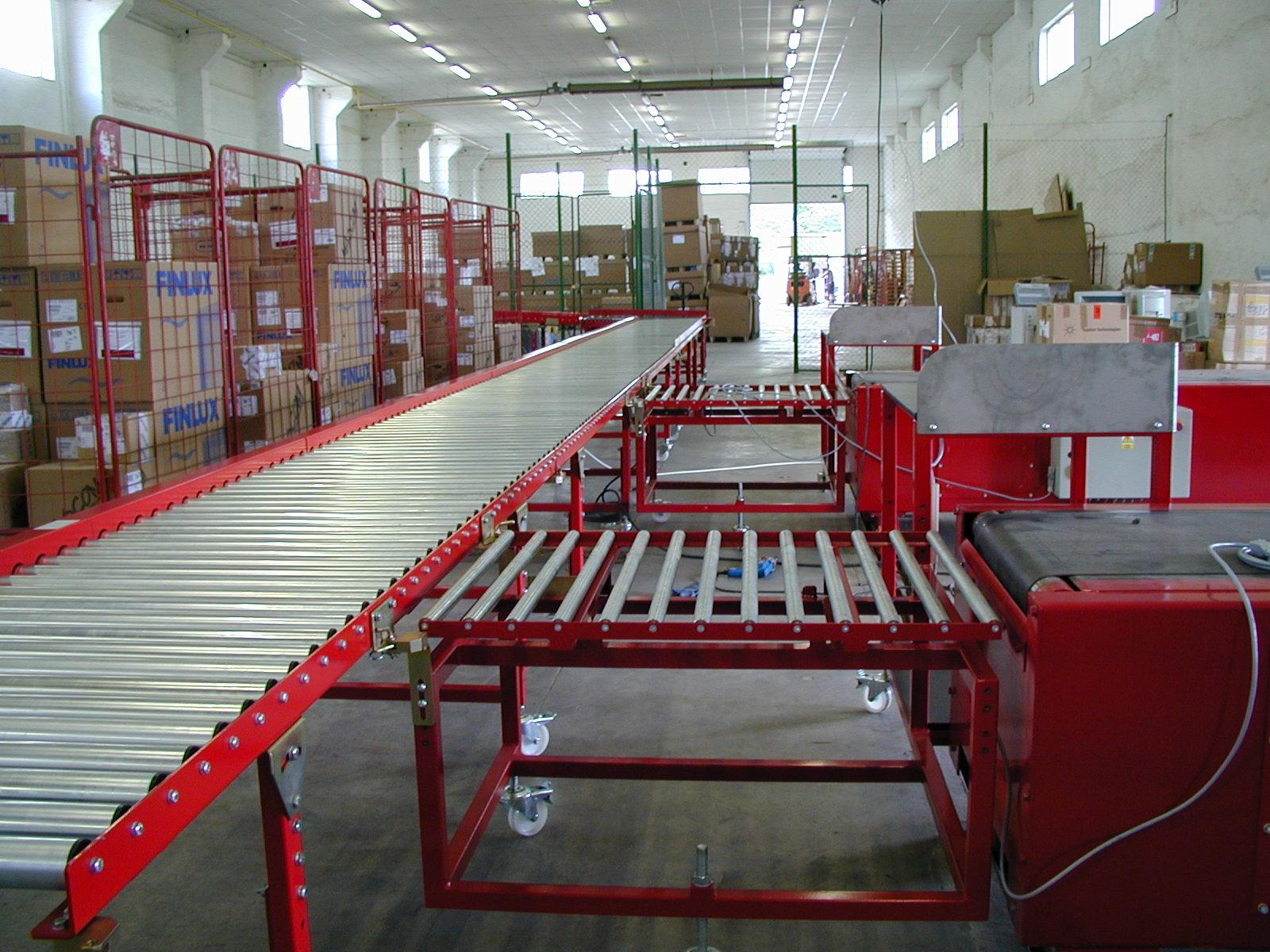

Non-Driven Roller Conveyors
Light modules of gravity roller conveyors without drive, designed for manual handling of lump goods. They are often used as gravity sections in larger lines too.

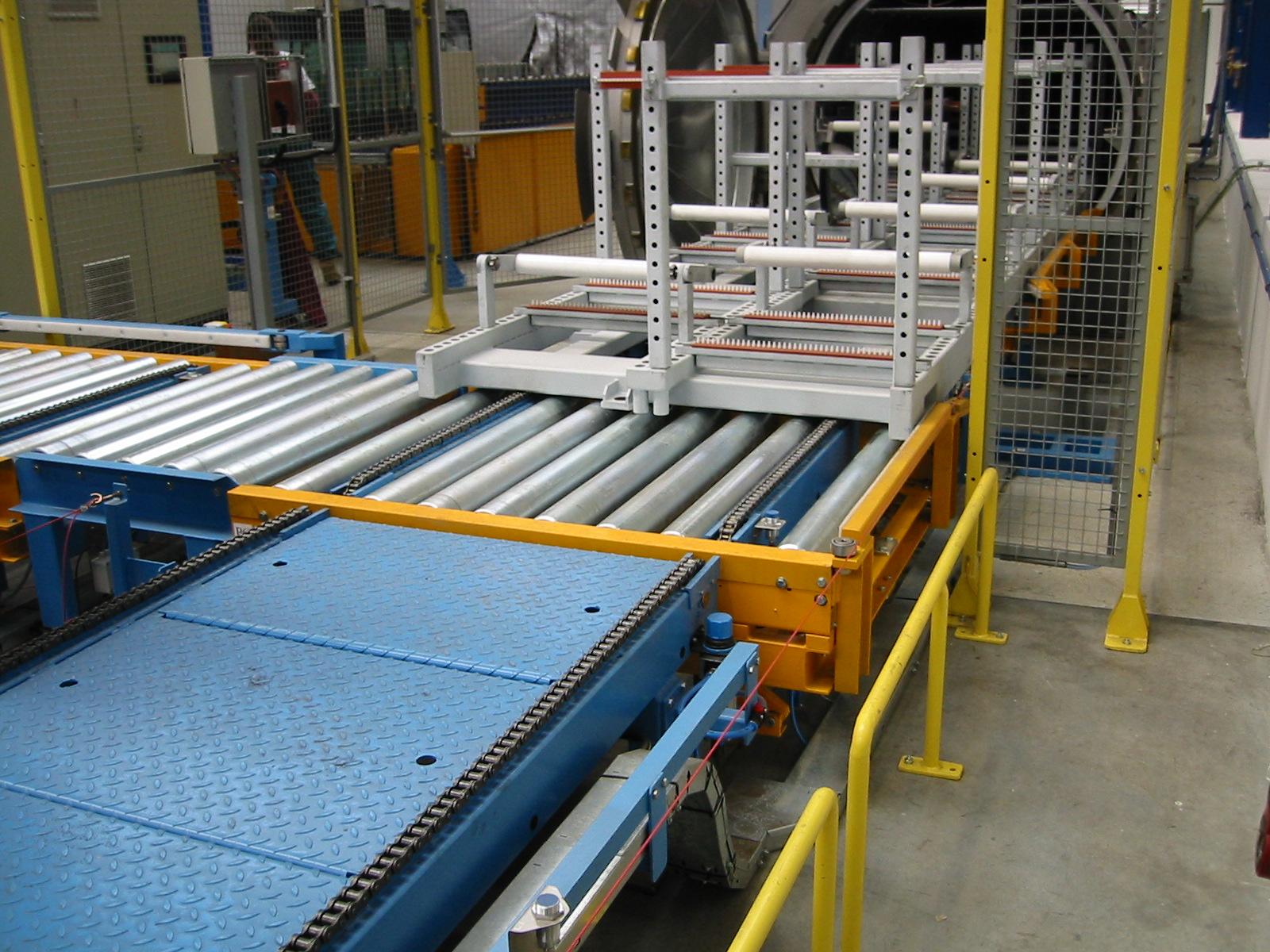

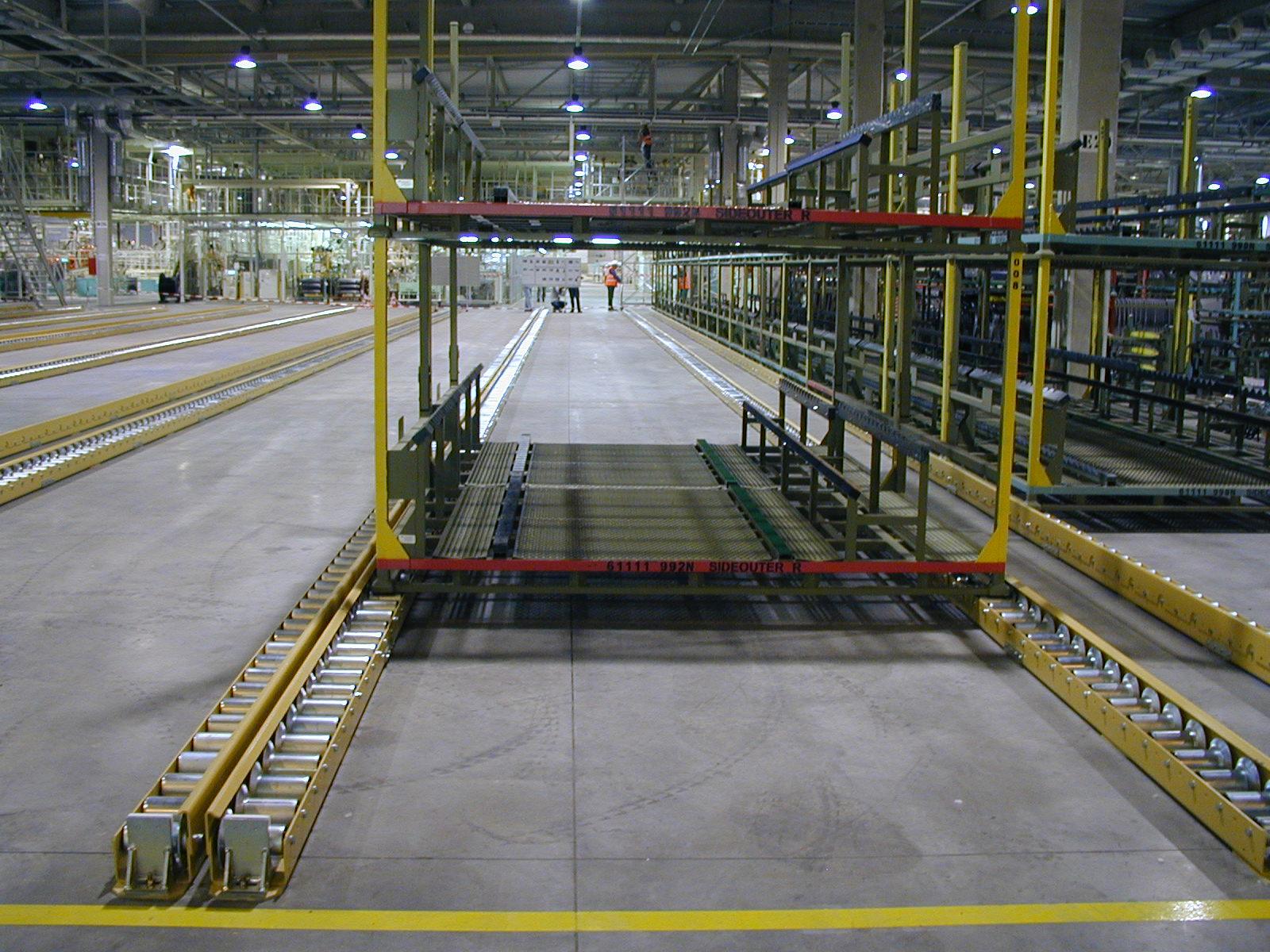

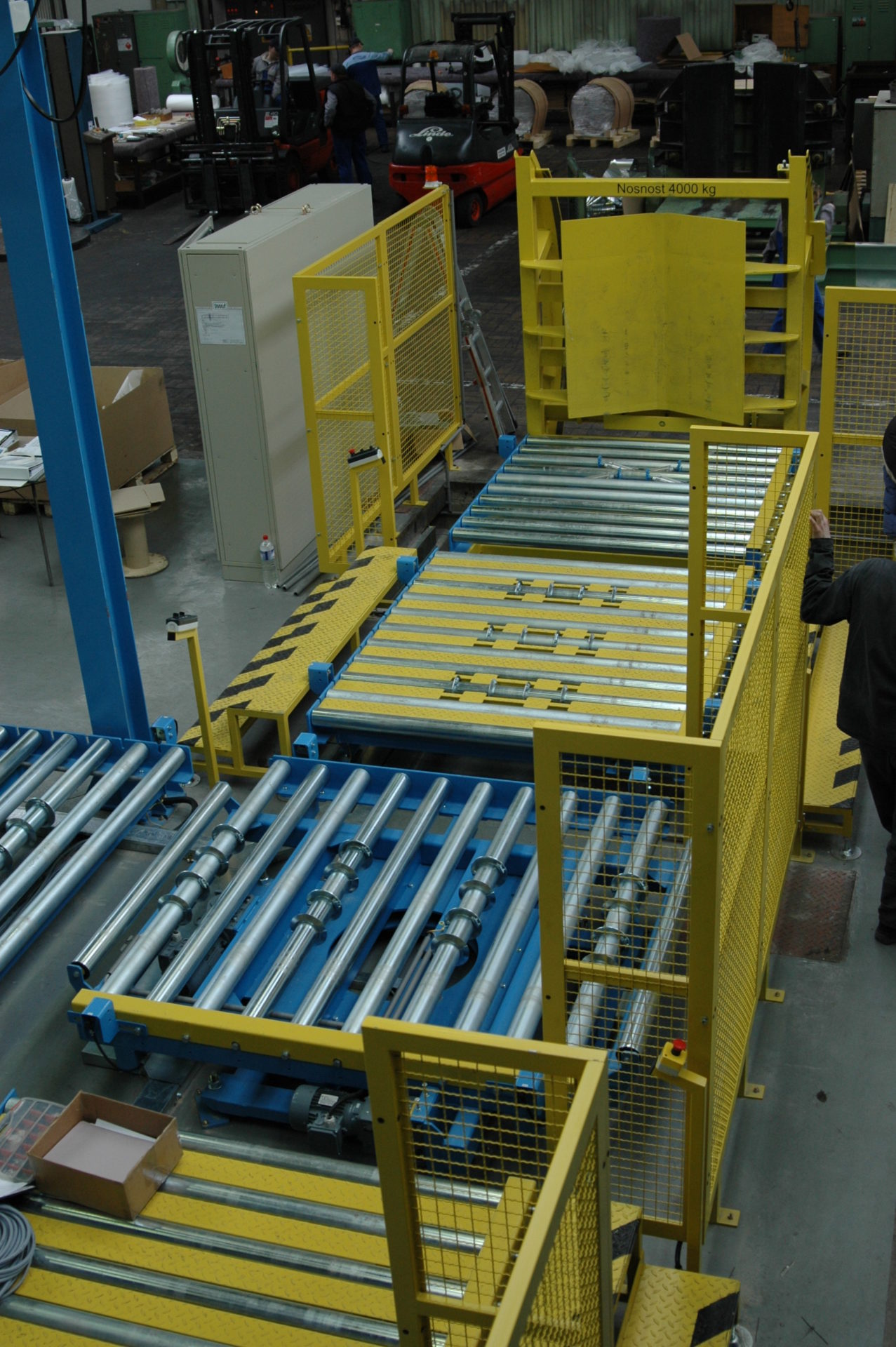

Pallet Roller Conveyors
They are designed especially for transportation of required goods with different weight located mainly on EURO wooden pallets. According to customer´s requirements these conveyors can be adjusted for various for pallet sizes.
Other accessories for conveyors
- input check – frame with photo cells and light box for indication of an overstepped outline
- loading and unloading place – adjusted for possible further manipulation with a pallet by means of a pallet truck or a fork-lift truck
- pallet elevator – elevator platform is guided with shrouded wheels in profile of steel structure columns and hung on rubber belts with steel rope cord; high velocity, noiseless operation
- dallet destackers – loaded by a fork-lift truck, adjustable for 800-1000 mm wide pallets, pneumatic control
- pallet transport lines can be completed by the turntable, strapping and wrapping machines, labeling machines and devices for marking (printing) of transported material

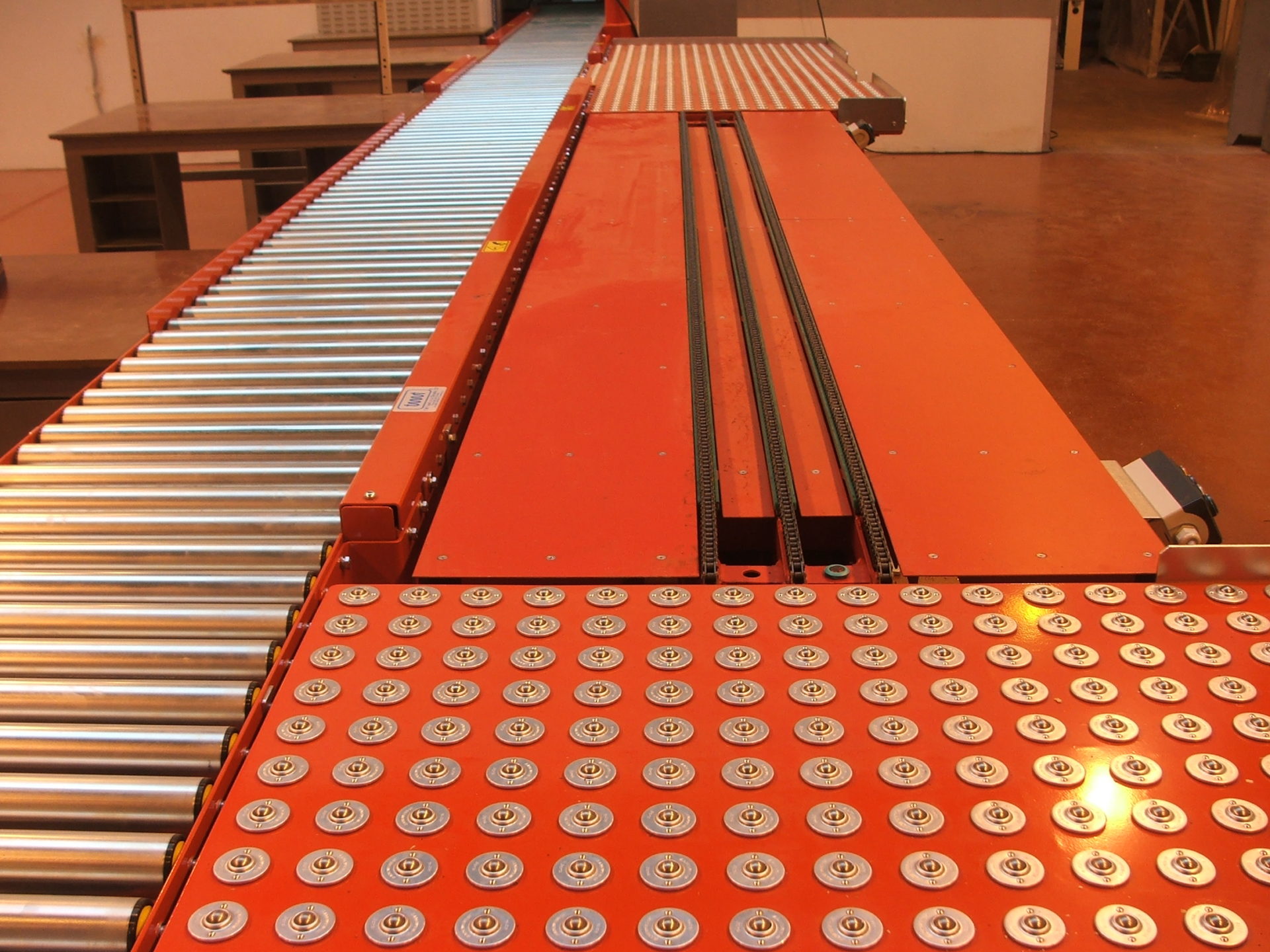

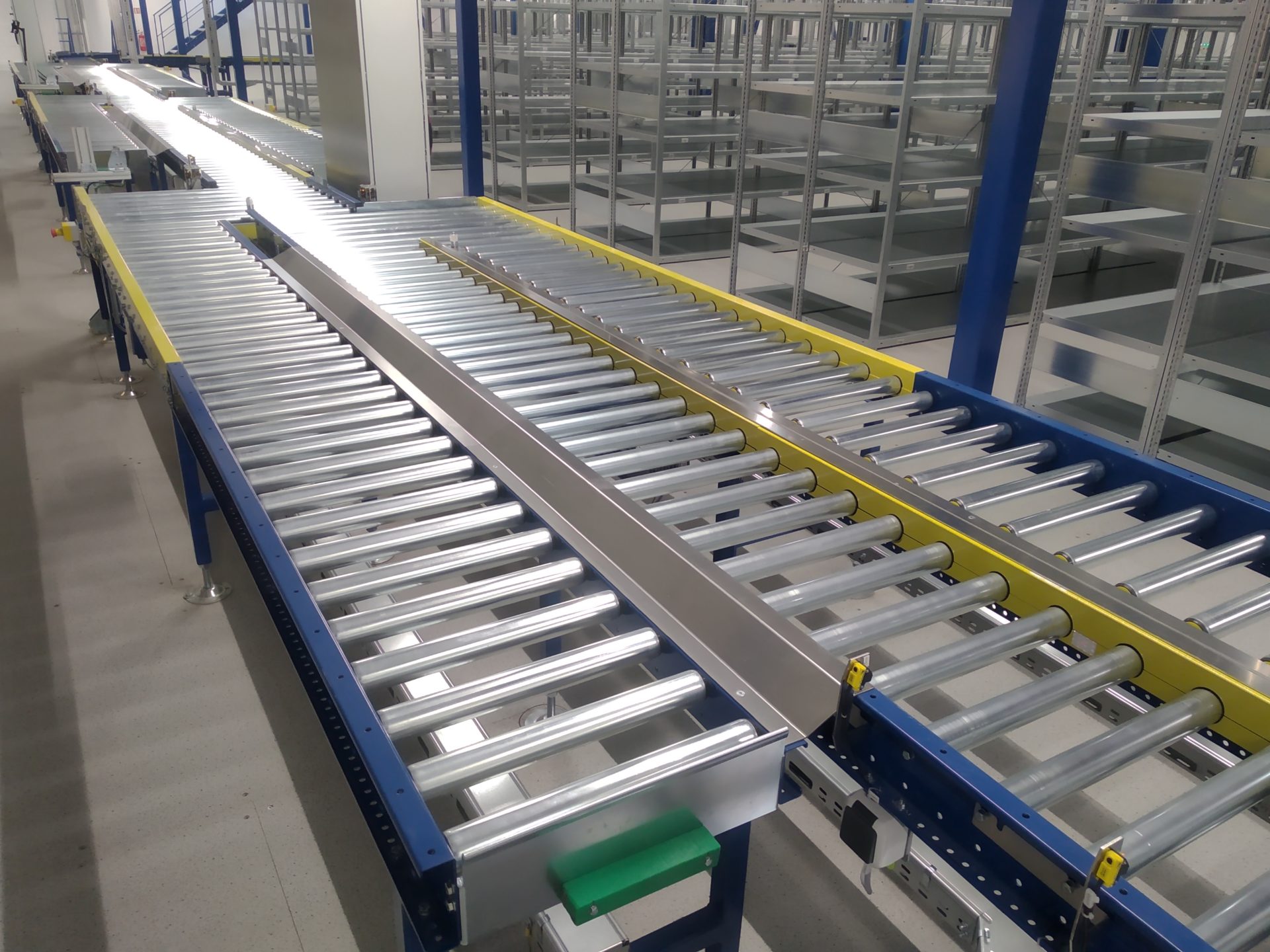

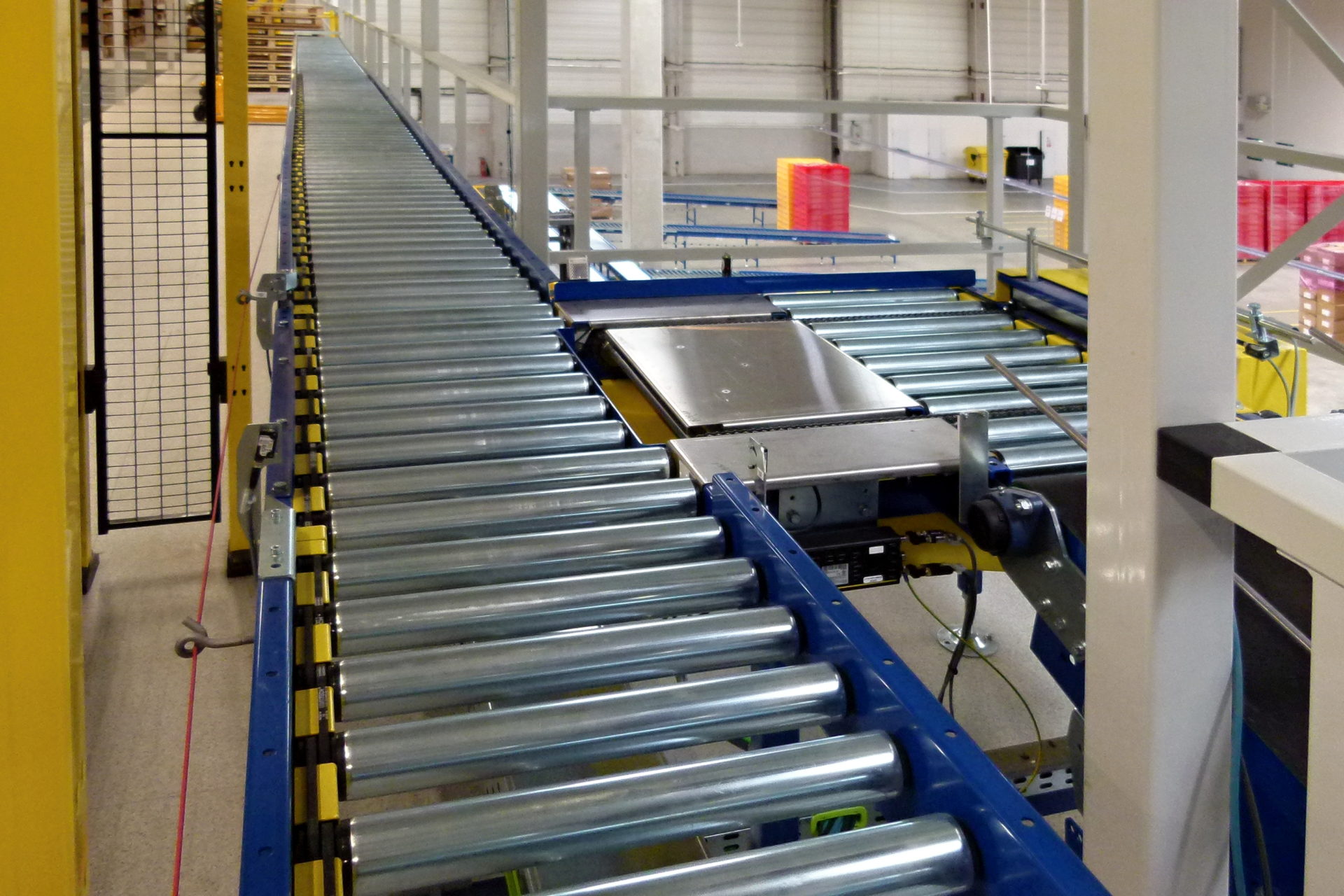

Roller transfer table
It is used for transport of piece items. They are mainly used in dispatch lines with splitting or merging of material flow. They are a combination of driven rollers and pneumatically lifted integrated chain or belt conveyors.

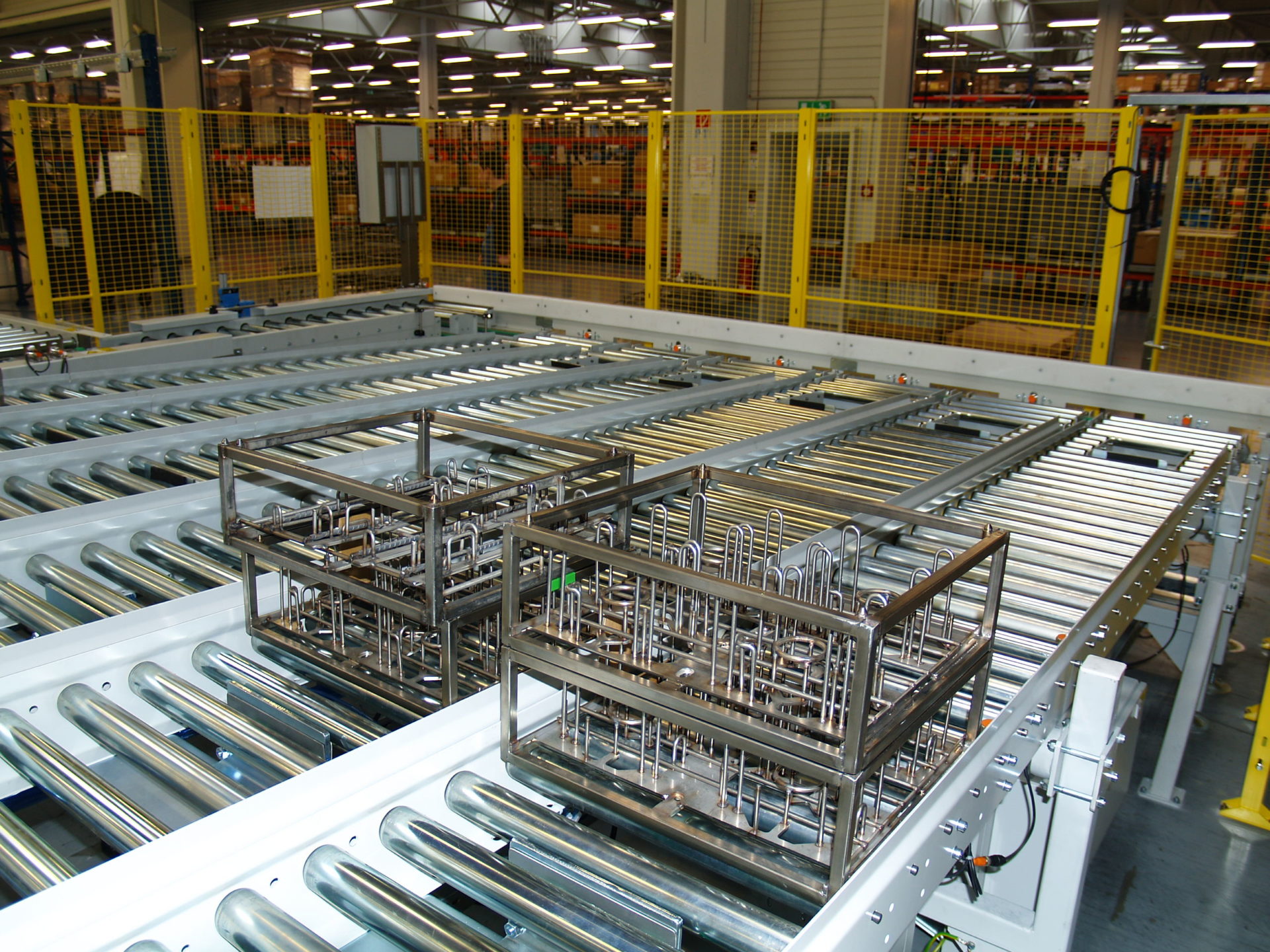

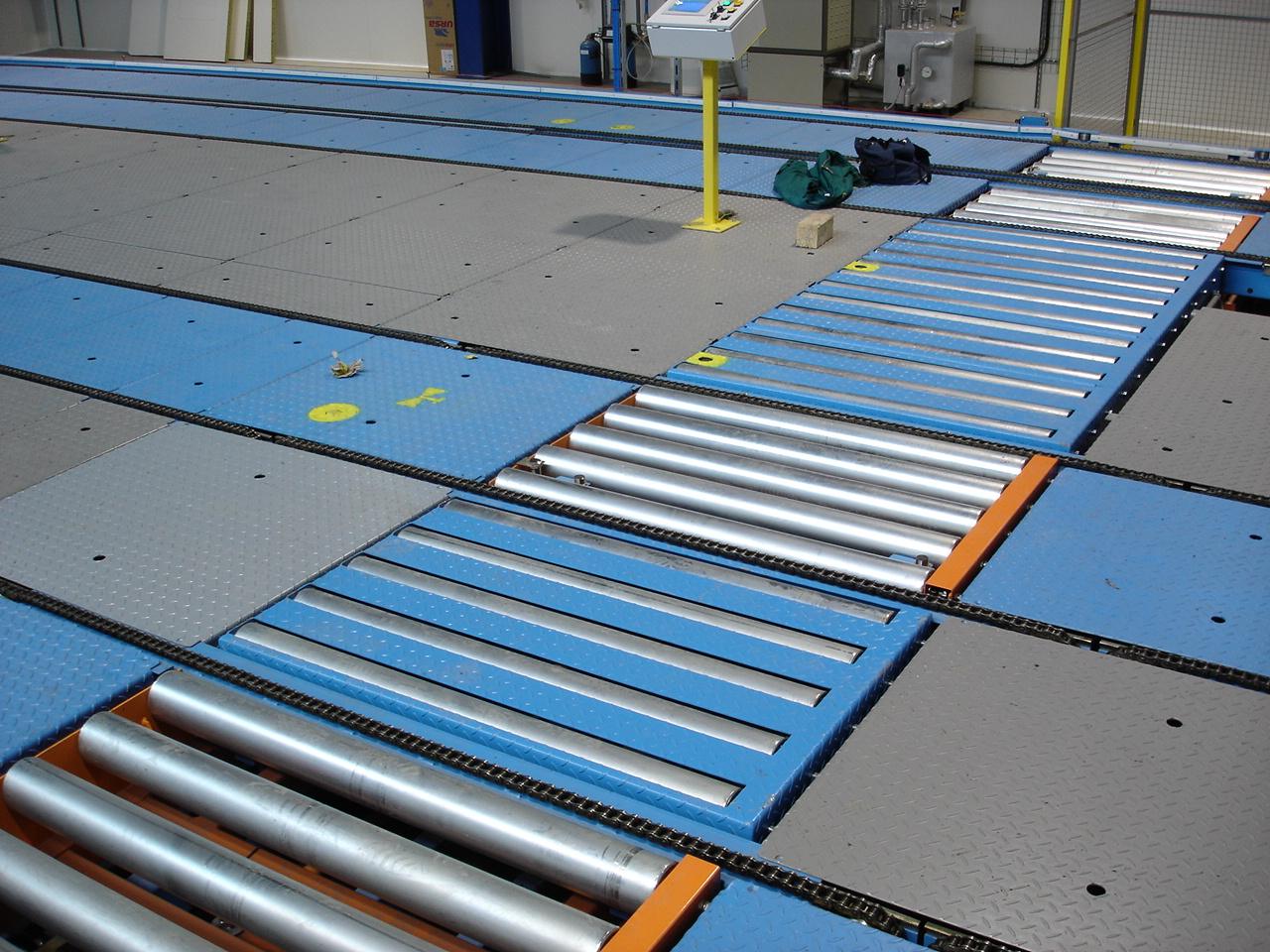

Roller-chain transfer table
In transport systems, they are inserted in places with the requirement of perpendicular connection of connecting routes, without changing the orientation of the transported load. The number of transfer chains is always determined by the shape, size and weight of the object to be transported. It can also be used for higher loads.

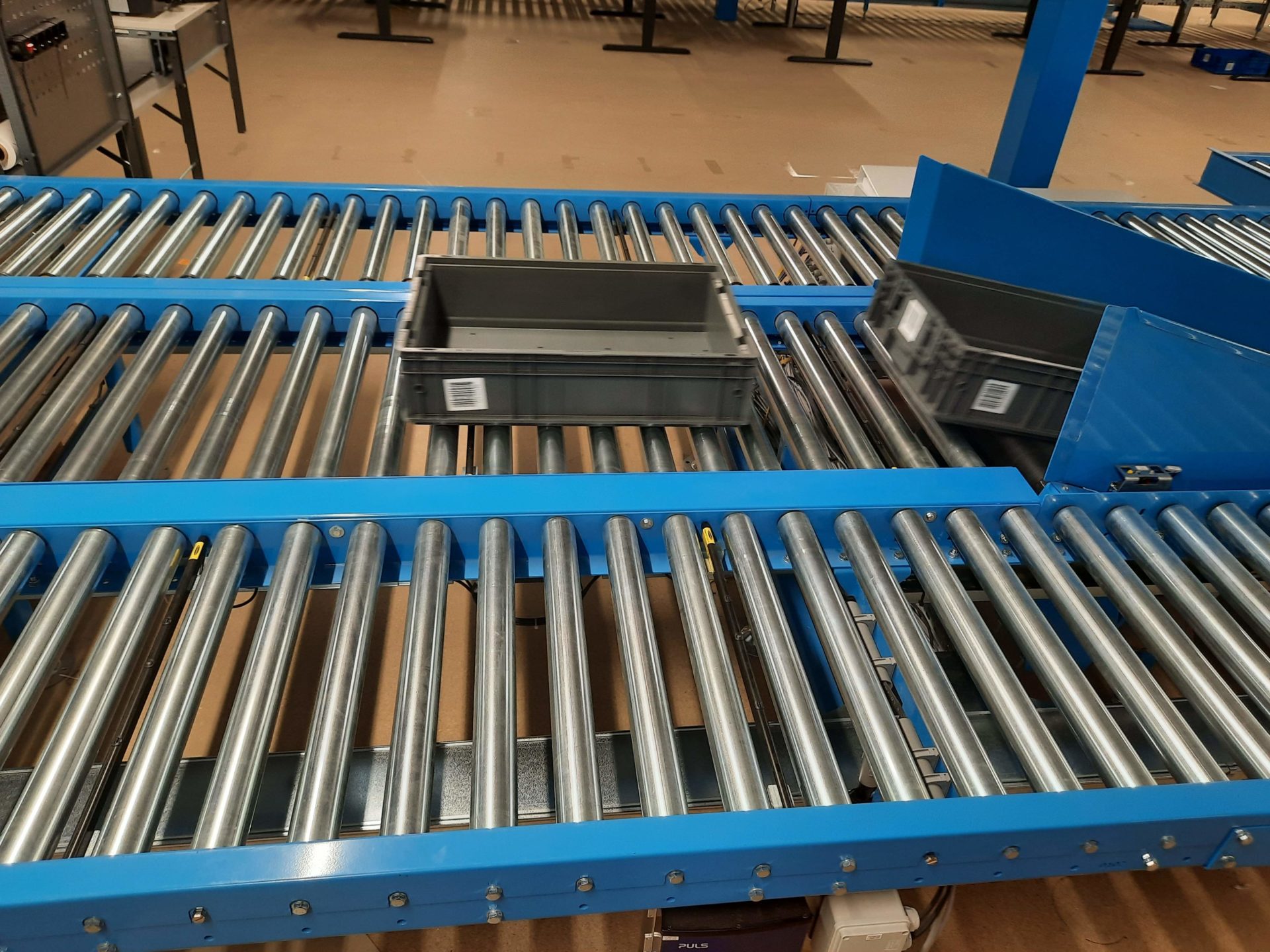

Roller-belt transfer table
The method of use and principle of operation is similar to that of the roller-chain transfer table. It is used for transporting large piece objects without changing the orientation of the load to be transported. It is suitable for smaller loads.
